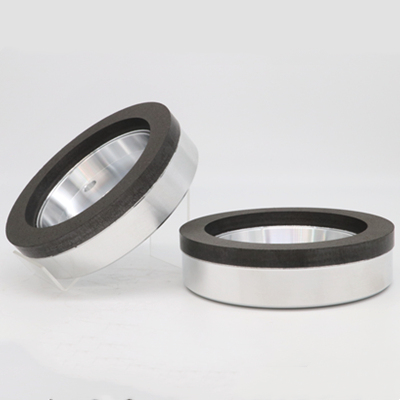

resin diamond wheels for glass .Resin silent beveling wheel is resin bond, cup shaped diamond grinding wheel, mainly used for glass edge grinding, working silently.
Glass straight edging machine, glass double edging machine, Beveling machine ( such as Deway, ZXM, BOTTERO, BAVELLONI, bovone, Schiatti angelo and Glassline )
Light weight and low noise,
Better wear resistance,
Long service life,
Grinding glass with a variety of thickness.
| Applicable Machine | Shape | D (mm) | W (mm) | T (mm) | H (mm) | Grit (#) |
| straight line edger | resin diamond cup wheel | 100 | 10 | 10 | 12, 22, 50 | 180 / 240 |
| 130 | 10, 15 | 10 | ||||
| 150 | 10, 15 | 10, 12 | ||||
| beveling machine | resin diamond bowl wheels | 150 | 10, 15 | 15, 10 | 12, 22, 50 | 240 |
| silent resin diamond wheels | 150 | 15 | 10 | 12, 22, 50 | 240 | |
| other specification can be made according to customers requirements | ||||||
