Vitrified CBN grinding wheel for camshaft

2019.12.11More SuperHard Products Co., Ltd125

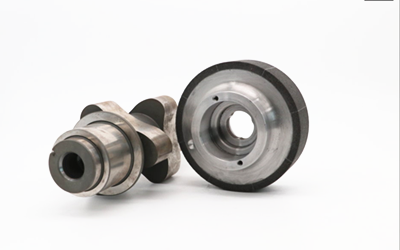

Vitrified CBN grinding wheel for camshaft .png

Machine:JUKER JUCAM5000

Wheel size: 150*50.8*18.5*18.5 (140/170)

Speed of wheel:75M/S

Material of workpiece:QT700

HRC of workpiece:58-62

Grinding allowance：Diameter 1.2mm

Ra of workpiece: 0.35

Grinding time：85S/pcs

Coolant：Oil

Dressing tool: electroplate Diamond roller

Dressing period:100-120pcs
