Case of CBN Inserts for brake disc

2020.03.10More SuperHard Products Co., Ltd64

Brake discs and brake drums are typical mass-produced parts. They are mainly made of gray cast iron.The new generation of CBN material-BNK30 by More Super hard with nano-scale binder and high-purity CBN particles, it can be used for high-speed brake discs and brake drums at cutting speed of 500-2000m / min.

Case of CBN Inserts for brake disc

Case of CBN Inserts for brake disc

Case:

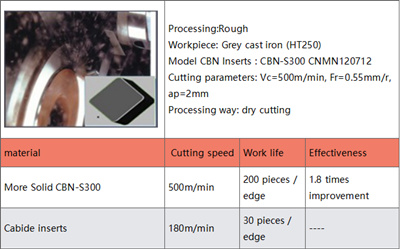

(1)turning -- roughing process: use of solid CBN(cubic boron nitride) insert BN-S300, which has stable performance, more than N times work life than carbide tools.

Case of CBN Inserts for brake disc

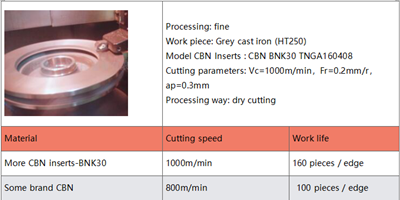

(2)turning - fine process:

recommended use CBN inserts BNK30 CGN090408/12, WNGA080408 to achieve high-speed cutting and ensure higher surface finish.

Case of CBN Inserts for brake disc

(3)inner hole processing :

using welding CBN (cubic boron nitride) inserts (type of composite and Mosaic). The advantages are high speed cutting and stable performance.
