We can supply single crystal diamond stone for diamond side milling tools,the holder is tungsten steel that not easy to heat and reduce the number of tools changes.The cutting edge is observed under the microscope of 500 times and no cracks can be seen,so the workpiece can achieve the mirror highlight effect.
Suitable for milling machine: CNC carving and milling machine
Application: cutting and processing of acrylic and aluminum material
Features: high hardness, good heat resistance, good wear resistance
MCD 1.5x3.4x0.6thickness
This is MCD tools size of D1.0xH2.5

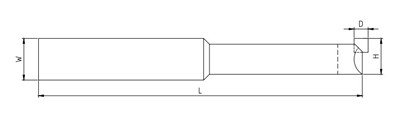

No. |
Specification(mm) |
W |
H |
D | |
Cut aluminium | Φ6.0x3.0Hx90°x6D | 6 | 6 | 3 | 90° |
Φ1.0x1.0Hx180°x6D | 6 | 1 | 1 | 180° | |
Φ1.5x1.0Hx180°x6D | 6 | 1.5 | 1 | 180° | |
Φ2.0x1.0Hx180°x6D | 6 | 2 | 1 | 180° | |
Φ2.5x3.0Hx180°x6D | 6 | 2.5 | 3 | 180° | |
Φ3.0x3.0Hx180°x6D | 6 | 3 | 3 | 180° | |
Φ4.0x3.0Hx180°x6D | 6 | 4 | 3 | 180° | |
Φ5.0x3.0Hx180°x6D | 6 | 5 | 3 | 180° | |
Φ6.0x3.0Hx180°x6D | 6 | 6 | 3 | 180° | |
Φ8.0x3.0Hx180°x6D | 8 | 8 | 3 | 180° | |
Φ12x3.0Hx180°x6D | 12 | 12 | 3 | 180° | |
Cut acrylic sheets | Φ1.0x1.0Hx180°x6D | 6 | 1 | 1 | 180° |
Φ1.5x1.0Hx180°x6D | 6 | 1.5 | 1 | 180° | |
Φ2.0x1.0Hx180°x6D | 6 | 2 | 1 | 180° | |
Φ2.5x3.0Hx180°x6D | 6 | 2.5 | 3 | 180° | |
Φ3.0x3.0Hx180°x6D | 6 | 3 | 3 | 180° | |
Φ4.0x3.0Hx180°x6D | 6 | 4 | 3 | 180° | |
Φ5.0x3.0Hx180°x6D | 6 | 5 | 3 | 180° | |
Φ6.0x3.0Hx180°x6D | 6 | 6 | 3 | 180° | |
Φ8.0x3.0Hx180°x6D | 8 | 8 | 3 | 180° | |
Φ12x3.0Hx180°x6D | 12 | 12 | 3 | 180° | |
Other sizes can also be customized according to the drawings | |||||
