what is H13 steel (X40 CrMoV5)?

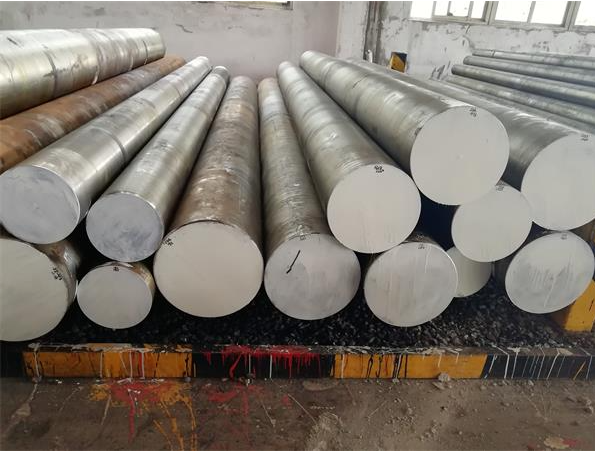

X40CrMoV5, also known as 1.2344 or AISI H13, is a widely used hot work tool steel known for its excellent toughness, thermal resistance, and wear resistance. It is designed to withstand high temperatures and repeated thermal cycling,making it an ideal material for tooling applications involving hot working processes such as die casting, extrusion, and forging.

The chemical composition of X40CrMoV5 typically includes approximately 0.40% carbon, 5.0% chromium, 1.3% molybdenum, and 1.0% vanadium, along with smaller amounts of silicon and manganese. The chromium enhances hardenability and oxidation resistance; molybdenum improves strength and creep resistance at elevated temperatures; and vanadium increases wear resistance and refines grain structure.

This steel is often heat-treated to reach a hardness range of 48–52 HRC, providing a good balance between strength and ductility. X40CrMoV5 exhibits excellent hot hardness (ability to maintain hardness at elevated temperatures), thermal fatigue resistance, and abrasion resistance, which are crucial for tools that are exposed to high thermal loads and mechanical stresses

Typical applications include hot forging dies, extrusion dies, aluminum die casting molds, plastic injection molds, and shear blades. It is also suitable for tools used in high-pressure and high-wear environments. Surface treatments like nitriding or PVD coating can be applied to further enhance wear resistance and extend tool life.

Using a CBN end mill cutter for machining X40CrMoV5 steel—especially in its hardened state (48–52 HRC)—offers exceptional performance due to CBN’s superior hardness and thermal stability. Below is a detailed overview:

How to choose cutting tools for maching steel X40 CrMoV5?

Choosing the right cutting tools for machining X40CrMoV5 (AISI H13 / 1.2344) — a hot work tool steel — is critical because this steel has high hardness, strength, and toughness, especially after heat treatment. Here’s how you should choose cutting tools for machining X40CrMoV5 effectively:

1. Tool Material Selection

Before Heat Treatment (Soft State, ~200 HB)
➔ Use carbide tools (especially fine-grain grades) for good wear resistance and productivity.
➔ High-speed steel (HSS) tools can also be used for roughing or low-volume operations.

After Heat Treatment (Hardened State, ~48–52 HRC)
➔ Use CBN (Cubic Boron Nitride) tools for hard turning and grinding because CBN offers excellent wear resistance at high hardness levels.
➔ Use coated carbide tools (e.g., TiAlN, AlTiN coatings) for finishing and semi-finishing operations.

2. Cutting Tool Geometry

Positive rake angles reduce cutting forces and heat generation.

Sharp cutting edges prevent built-up edges and improve surface finish.

Use high edge strength geometries for interrupted cuts or roughing.

3. Cutting Conditions

Lower cutting speeds for HSS tools; higher speeds for carbide and CBN tools.

Use adequate coolant to manage heat (especially for drilling and milling).

Controlled feed rates to avoid excessive tool wear or chipping.

4. Operation-Specific Tips

Turning: Use coated carbide or CBN inserts with a robust cutting edge.

Milling: Use solid carbide end mills with TiAlN coatings; consider high-feed milling cutters.

Drilling: Use carbide drills with coolant channels to ensure chip evacuation.

Grinding: Use CBN grinding wheels for efficient material removal with excellent surface finish.

5. Tool Coating

TiAlN, AlTiN, or nano-composite coatings are highly recommended for carbide tools.
These coatings offer better oxidation resistance and thermal stability.

Summary:

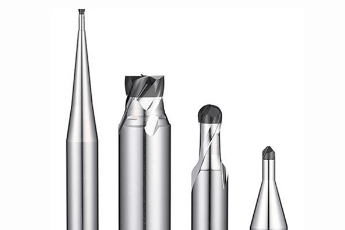

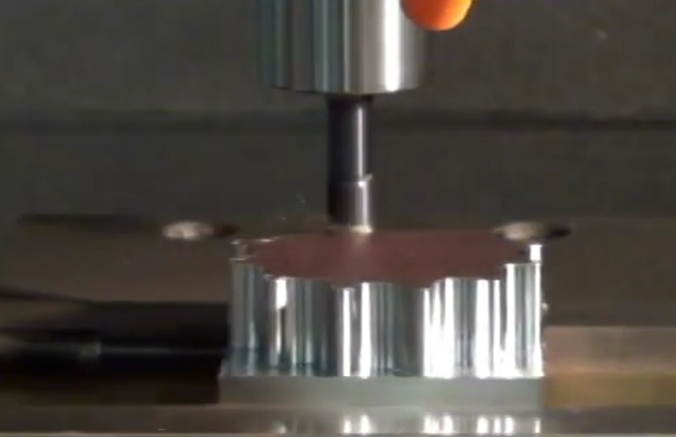

Why Choose CBN End Mill Cutter for X40CrMoV5?

X40CrMoV5 (AISI H13 / 1.2344) is a hot-work tool steel commonly used in die casting, forging dies, and injection molds. After hardening, it becomes very wear-resistant and difficult to machine with conventional tools. This is where CBN (Cubic Boron Nitride) tools shine.

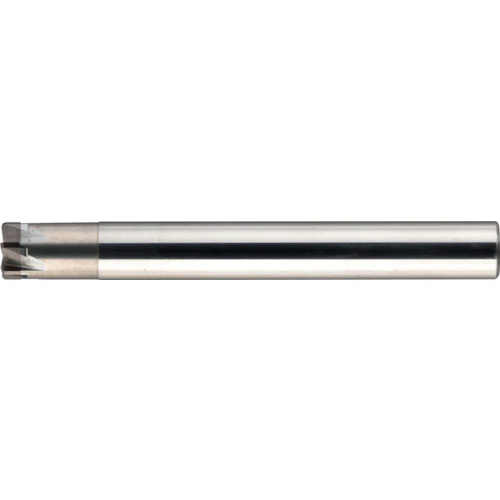

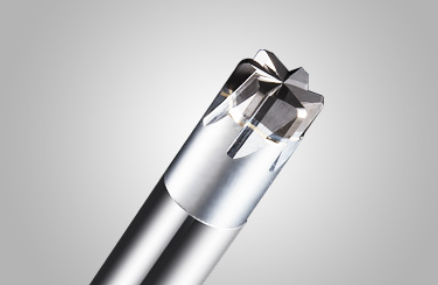

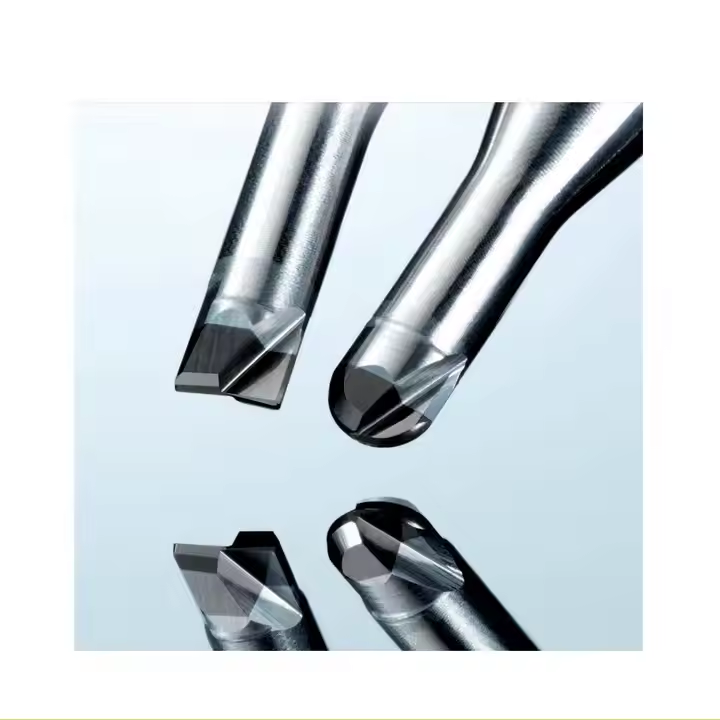

Advantages of CBN End Mill Cutters for X40CrMoV5

* Outstanding Hardness: CBN is second only to diamond in hardness—ideal for hardened steels.

* High Thermal Stability: Can withstand temperatures above 1000°C without losing cutting edge sharpness.

* Excellent Wear Resistance: Maintains dimensional accuracy and surface quality over longer tool life.

* No Need for Coolant: Enables dry machining, reducing thermal cracking and coolant costs.

Superior Surface Finish: Ideal for finish milling where surface integrity is critical.

H13 steel (with the International organization for Standardization material grade 40CrMoV5), as a hot work die steel, features excellent hardness, red hardness, wear resistance and corrosion resistance. It is also easy to process and heat treat, making it suitable for manufacturing high-strength, high-wear-resistant and corrosion-resistant components.

Recently Moresuperhard received one inquiry about maching steel X40 CrMoV5, lets see the Moresupehard solutions together:
