CBN end mills are cutting tools designed for machining selected high-hardness materials, particularly hardened steel and heat-treated mold components. They are used in precision milling applications where dimensional accuracy, cutting-edge stability, wear resistance, and surface finish are important.

As a superhard cutting tool manufacturer, we provide CBN milling tool options for customers seeking reliable machining performance in hardened steel finishing and precision mold production. Tool selection can be tailored to the workpiece material, hardness, machining geometry, finishing allowance, and required surface quality.

CBN End Mill Types

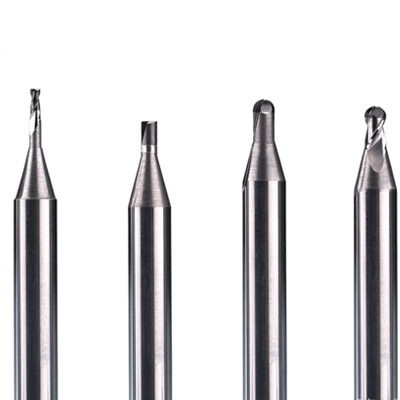

Different cutting geometries are suited to different workpiece features and machining requirements. The appropriate design depends on the geometry to be machined and the required finishing result.

CBN Square End Mill

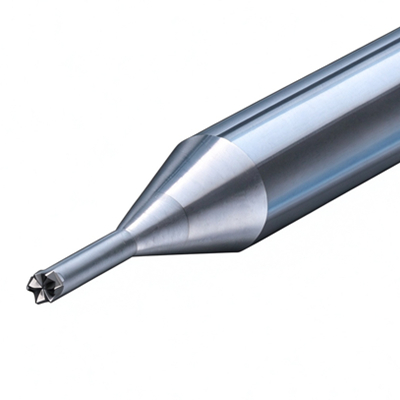

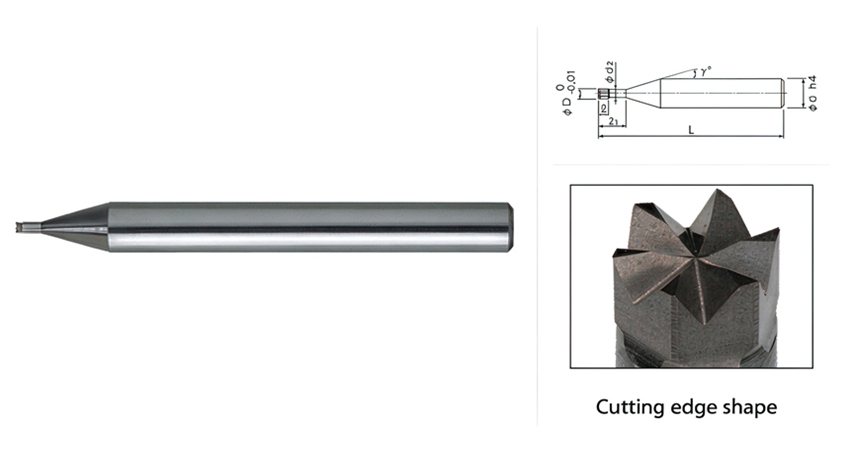

CBN square end mills are suitable for machining flat surfaces, straight walls, shoulders, and other features that require a defined corner geometry. They can be considered for finishing operations on hardened steel components and mold features.

CBN Ball Nose End Mill

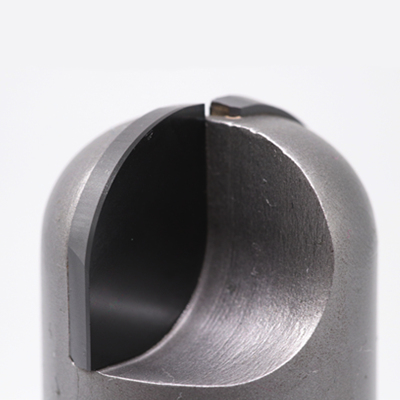

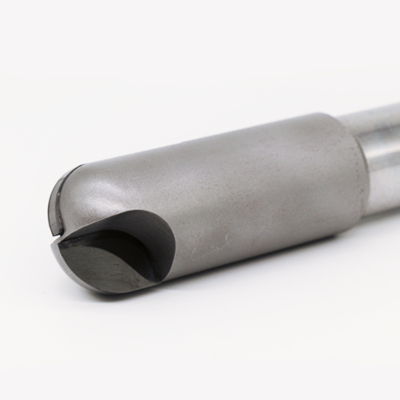

CBN ball nose end mills are designed for curved surfaces, three-dimensional contours, and complex mold cavities. They are particularly relevant to precision mold finishing where contour accuracy and surface quality are important.

CBN Corner Radius End Mill

CBN corner radius end mills feature a rounded cutting corner. This geometry can help reduce stress concentration at the cutting corner compared with a sharp square corner, depending on the cutting conditions and tool design. Typical applications include shoulder milling, side-wall finishing, step machining, and profile finishing.

Applications of CBN End Mills

Precision Mold and Die Machining

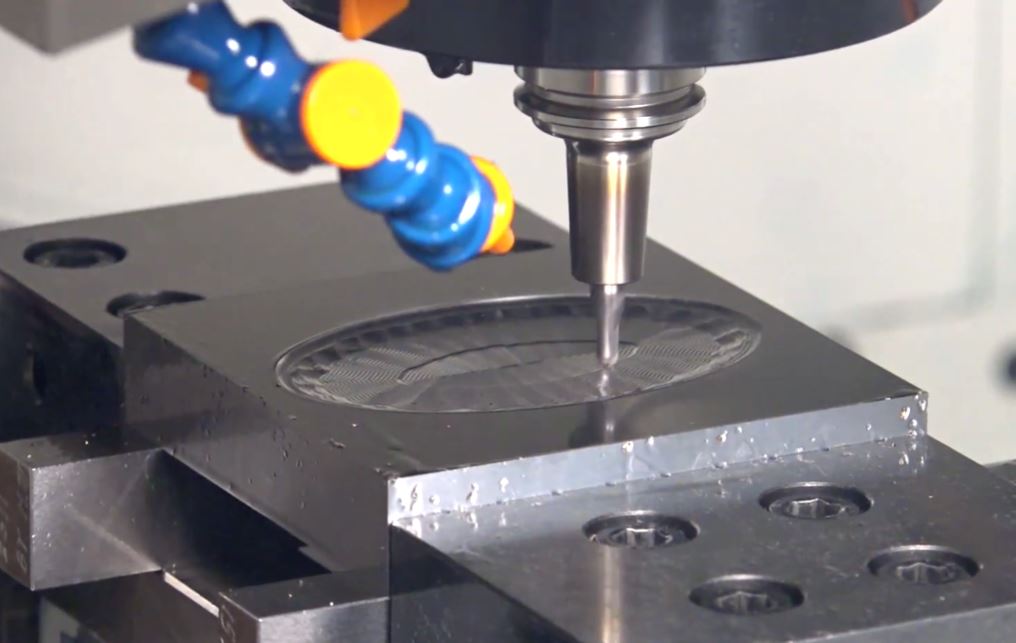

CBN end mills are used in selected hardened mold and die machining applications, particularly where finishing accuracy and surface quality are critical. The tool geometry should be selected according to the cavity shape, wall features, corner requirements, and machining strategy.

Hardened Steel Finishing

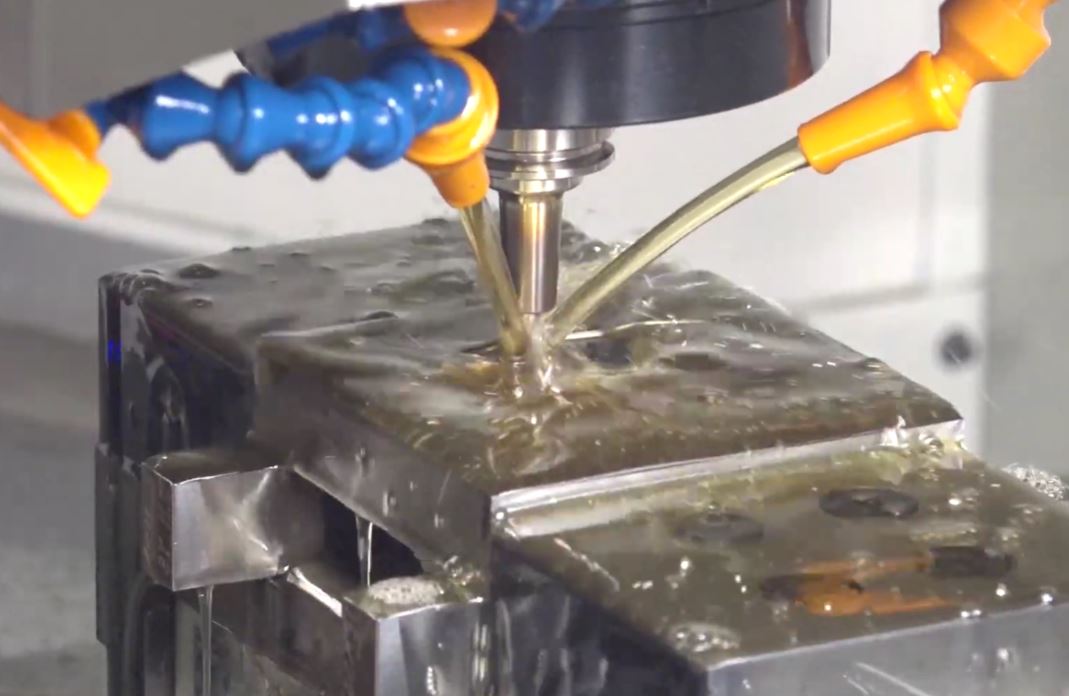

For suitable hardened steel workpieces, CBN milling tools can be considered for finishing operations after heat treatment. Their suitability depends on workpiece hardness, material composition, cutting conditions, machine rigidity, and the amount of material to be removed.

Complex Profiles and Mold Cavities

Ball nose and corner radius designs can be considered for complex profiles, curved surfaces, and cavity features. Selecting the correct tool geometry helps match the cutting edge to the required surface and machining path.

Key Factors When Selecting a CBN End Mill

Workpiece material and hardness

Identify the steel grade, heat-treatment condition, and actual workpiece hardness before selecting a CBN tool. Different CBN grades and cutting-edge designs may be required for different materials and machining conditions.

Cutting geometry

Choose square, ball nose, or corner radius geometry according to the machined feature. Consider the required corner radius, cavity shape, wall geometry, and tool accessibility.

Machining allowance and operation

CBN end mills are often selected for finishing demanding hardened-steel applications. The appropriate finishing allowance and cutting parameters must be established for the specific tool and machining setup.

Machine rigidity and spindle performance

Machine stability, spindle condition, tool holding, workpiece clamping, and tool overhang can influence cutting performance. A rigid setup helps reduce vibration and the risk of cutting-edge damage.

Surface finish and dimensional requirements

The required surface finish, contour accuracy, and dimensional tolerance should be considered together with the tool geometry and machining strategy. Cutting conditions should be validated through application-specific trials.

CBN End Mills vs. Carbide End Mills

CBN and carbide end mills serve different machining needs. CBN tools are particularly relevant to selected high-hardness steel finishing applications, while carbide tools cover a broader range of conventional milling operations and workpiece materials.

The correct choice depends on workpiece hardness, machining allowance, cutting-edge geometry, machine capability, production volume, and the required surface quality. CBN should not automatically be considered a replacement for carbide in every machining operation.
