Electroplated Diamond Band Saw Blades

Electroplated Diamond Band Saw Blades

The electroplated diamond band saw blades are used for cutting super hard material and brittle materials

Alias: Band Saw Blades, Electroplated Diamond Blade
Application: silicon, quartz glass, stone
e-mail: sales@moresuperhard.com
Details

The diamond blades are available in continuous and gulleted edges. In the processing of the electroplated diamond band saw,the heating temperature of the diamond is less than 100ºC,so the damage to the diamond is very small,then the Electroplated Diamond Band Saw can also have the good long life time.

Application of diamond band saw blade

Cutting super hard material and brittle material ,such as stone, monocrystalline silicon,polycrystalline silicon in solar energy, semiconductor and sapphire, ruby in LED field, quartz glass, silicon ingot, sapphire ingot and so on.

The specifications of diamond band saw blades

Length(mm) Width(mm) Thickness(mm) diamond band saw blades
3230 40 0.7
3440 40 0.7
3530 40 0.7
3700 80 0.6 0.7
4320 60 0.5 0.6 0.7
5400 60 0.5 0.6 0.7
6095 40 0.7
other specifications can be made according to customers requirements

Edge shapes of diamond band saw blades

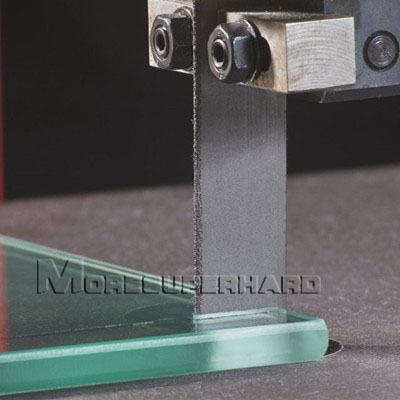

continuous shape diamond band saw blades

Continuous

A variety of band core width available

Continuous rim design reduces the saw marks on the materials

Suitable for dry cutting hard materials , such as glass , ceramic , carbon materials and so on.

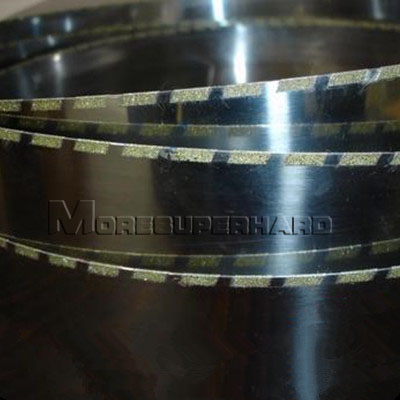

segmented shape diamond band saw blade

segmented ( half moon):

Cutting hard and brittle materials

Superior tool life and cutting ability in silicon processing

Allows greater flexibility in customizing blade edge width and pitch

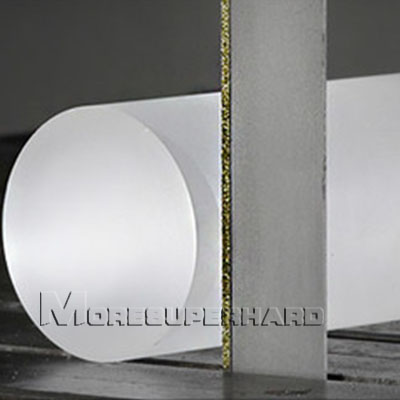

Serrated diamond band saw blade

Serrated :Wide width band saw blades possible

Cutting difficult to cut materials

Reduced -loading saw tooth design encourages chip evacuation

Application Cases Of Continuous Diamond Coated Band Saw Blade

* 6400mm length Continuous Diamond Coated Band Saw Blade Have Sent To Indian Clients

product name Continuous Diamond Coated Band Saw Blade
size 6400mmx41mmx1.2mm
applicable workpiece cutting Graphite Materials

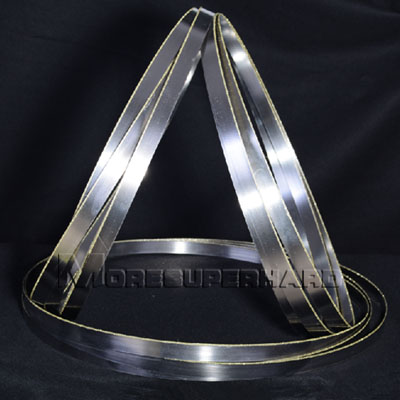

continuous diamond coated band saw blade for cutting graphite materials
