Resin bond Diamond & CBN Wheel for Needle Grinding

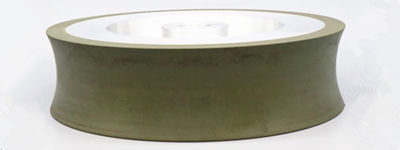

Resin bond Diamond & CBN Wheel for Needle Grinding

The tattoo needle is made of stainless steel, which is sticky and hard to grind.

Alias: Tattoo Needle Grinding Wheel, Resin CBN Wheel
Application: Tattoo Needle Grinding
e-mail: sales@moresuperhard.com
Details

The tattoo needle is made of stainless steel, which is sticky and hard to grind. Therefore, grinding wheels with high brittleness and sharp hardness should be selected. More Super Hard company is very professional experience in needle grinding wheel processing experience.

Advantages Of Resin Diamond/CBN Wheel For Needle Grinding

Resin bond has good cutting performance and the sharpness, suitable for grinding stainless steel, and CBN (cubic boron nitride) abrasive hardness is very high, good thermal stability, chemical inertness, high oxidation in 1300 ℃ ~ 1500 ℃, abrasive blade tip is not easy to get dull, the grinding heat is less, so resin CBN grinding wheel for needle is the best choice

Specifications Of Resin Diamond/CBN Grinding Wheel For Needle

resin cbn wheel for tattoo needle grindingresin cbn wheel for needle grinding

Model

D (mm)

T (mm)

H (mm)

W (mm) or X (mm)

Resin Diamond & CBN

254

80

32 40

 13 15 20

300

80

32 40

13 15 20

400

80

32 40

13 15 20

Grit: 120#;180#;320#;400#;500#;600#

Grinding the needle with a resin wheel is divided into the following three steps

Grain Size

Machining Type

Application

30#-120#

Rough

Use a coarse-grained diamond /CBN grinding wheel to grind the round rod into a needle shape

150#-250#

Universal

Then grind the stainless steel bar to determine the rough shape of the tattoo needle and make the tip smooth.

320#-600#(W28)

Finish

Lower the feed speed and grind it slowly, get a nice smooth surface

Others grits can be made according to customers' requirements.
