Composites processing is fundamentally different from metal processing. In metal processing, the machined material is softer than the cutting tools, and the machined material will form continuous, serrated intermittent chip deformation during the cutting process. The processing of composite materials is itself a series of brittle destruction processes, in which the impact of the cutting edge causes the hard fiber to shatter, forming a powder or brush-like debris.
Composite materials are typical difficult to process materials, easy to tear, burr, delamination, thermal damage and other processing problems, the sharpness, wear resistance and stability of the cutting tools put forward extremely high requirements. For processing composite materials, the tool is usually cut with diamond coating tools or PCD tool.

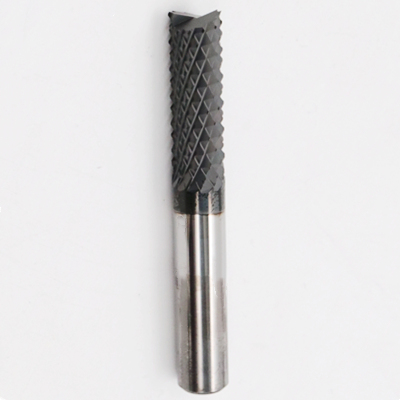

Appluication of diamond coated Multi-flute endmill

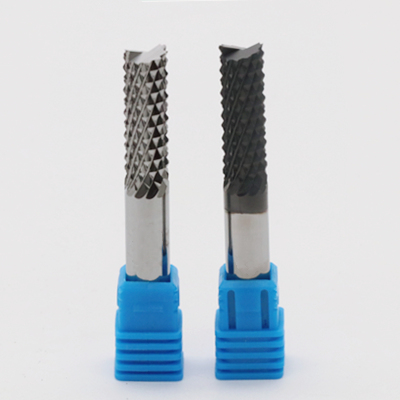

Diamond coated Multi-flute endmill is ideal for edging, trimming and finishingCFRP and GFRP and other composites with high fiber reinforcement.
PCD Milling Cutters for Carbon Fiber Machining
Carbon fiber materials are widely used in many fields such as aerospace and automotive industries, and possess excellent properties including high specific strength, high temperature resistance, friction resistance, electrical conductivity, thermal conductivity, and corrosion resistance. However, carbon fiber materials are prone to defects like delamination and tearing during processing, which adversely affect the quality of the machined surface.
More Super Hard PCD milling cutters are made of PCD material and feature good hardness, toughness, and fatigue resistance. They can effectively reduce defects such as delamination and tearing of carbon fiber materials during processing, improve the flatness and finish of the machined surface, and meet the requirements of high-precision processing.
Features of PCD Milling Cutters for Carbon Fiber Machining
>Capable of machining carbon fiber composites
>Effectively reduces defects such as delamination and tearing during carbon fiber material processing, with excellent surface flatness and finish as well as high processing efficiency
>High cutting speed and feed rate for superior machining efficiency
>Custom non-standard specifications available

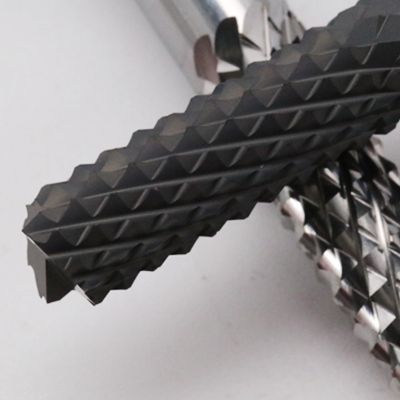

Features of diamond coated Multi-flute endmill:
* The optimized carbide matrix makes the hardness of the tool matrix high.
* Submicron WC particles, which can achieve high wear resistance;
* Left/right cross edge design, in order to improve the sharpness of the tool, effectively reduce the lamination and burr generation;
* Strong close tooth design, improve processing efficiency and accuracy;
* Adopt sharp positive front angle design, reduce chip force and cutting heat, avoid defects such as tear and burr of composite material;
* Nano-diamond coating, slow tool wear, tool life doubled.
Diameter | Blade length | Total length | Shank diameter | Number of blades | End tooth type | Coating type |
4 | 12 | 62 | 4 | 6 |
None/End mill/Drill |
None/Diamond |
6 | 18 | 62 | 6 | 8 | ||
6.35 | 18 | 62 | 6.35 | 10 | ||
8 | 25 | 78 | 8 | 12 | ||
9.25 | 25 | 78 | 9.525 | 12 | ||
10 | 25 | 78 | 10 | 12 | ||
12 | 25 | 78 | 12 | 14 | ||
12.7 | 55 | 78 | 12.7 | 14 |
Case of Diamond coated Multi-flute endmill for CFRP composite
Workpiece material | CFRP composite (T700, T800 grade) | |
Shank | HSK63A heat shrink shank | |
Cutting method | Dry cutting | |
Tool specification model | D8*25*L78*SD8*Z8 | |
Coating | Diamond coating | |
Processing parameters | Cutting speed | Vc=200m/min |
Feed | F=800mm/min | |
Cutting width | ae=8mm | |
Cutting depth | ap=5mm | |
Processing result | The processing length is 30m, the surface of the composite has no burr, tear and other defects, and the surface finish is less than Ra1.6. | |
