Diamond & CBN Tools for Steel Iron Rolls Machining

2019.01.16More SuperHard Products Co., Ltd70

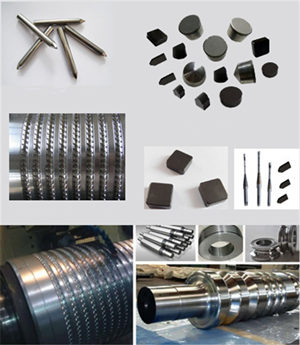

Rollers are almost universally used in nearly every manufacturing process in the world. The roller is the main part of the rolling machine, with the pressure which come from the rolling roller to roll the steel. There are many kinds of roller, the commonly material of the roller have : cast steel roller, case iron roller, forged roller.

solid cbn inserts for roller machining

The tool materials for machining rolls include carbide insert, ceramic inserts and CBN Inserts. CBN Insert is the hardest tool material for the processing ferrous metal materials and is the preferred tool for heavy duty cutting rolls. When processing mill rolls, especially processing large scale steel iron roll, it often has irregular surface, sand inclusion, holes and other problems. In order to solve the above problems we should choose what diamond and CBN tools for processing roller.

1. PCD boring cutters for roller

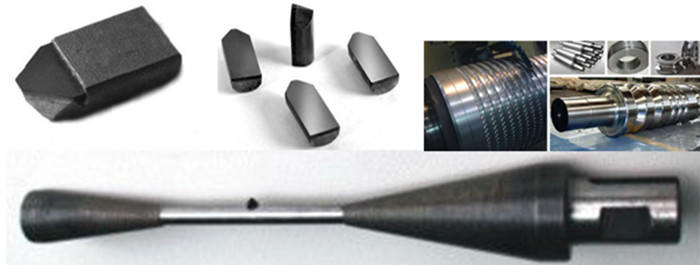

PCD boring cutter for rollers are used for machining various carbide tungsten rollers.Improved by 5-10 times comparing to grinding

PCD boring cutters for roller

The parameters of PCD boring cutter

pcd boring cutter

PCD boring cutter

Size Info(mm)

D

b

H

L

θ°

2.5

0.5

1.6

5.2

80

3

0.6

1.8

5.5

80

4

0.7

2.3

7.83

70

4

0.8

2.4

9.55

80

4.5

0.9

2.75

10.7

80

pcd boring cutter

PCD boring cutter

Size Info(mm)

D

b

H

L

θ°

4

0.4

3.4

7.98

70

4

0.8

3.4

9.68

80

4.5

0.9

3.9

10.84

80

pcd boring cutter

Tool Holder

Size Info(mm)

D1

D2

D3

L1

L2

4.5

2.5

16

5.22

35

6

3.2

16

6.8

41

8.8

5

16

9.5

56

10.4

5

18

11

65

13.5

6

18

14

65

15.2

6

20

16

66

2.PCBN inserts for roller

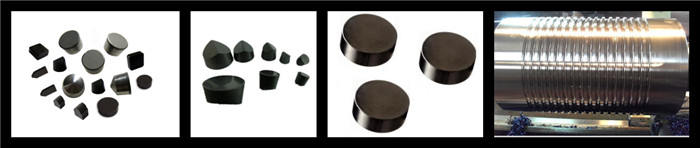

As a PCBN inserts manufacturer and exporter in China, More Superhard PCBN inserts have excellent performance in processing gray cast iron,nodular cast iron,hardened steel and material, sintered metal,and processing work piece surface is highly polished and very durable.

solid cbn inserts

The parameters of PCBN inserts for roller

RNMN CBN InsertsRNMN CBN Inserts

Insert Type

Size Info

L(mm)

I.C(mm)

S(mm)

R(mm)

D(mm)

RNMN060400

6

6.35

4.76

0

-

RNMN120700

12

12

7.94

0

-

RNMN160700

16

16

7.94

0

-

RNMN190700

19

19.05

7.94

0

-

RNMN201000

20

20.000

10.00

0

-

RNMN251000

25

25.400

10.00

0

-

RCGX Solid CBNRCGX Solid CBN -V

Insert Type

Size Info

L(mm)

I.C(mm)

S(mm)

R(mm)

D(mm)

RCGX060500

 6.35

6.35

4.76

-

-

RCGX090700

9.525

9.525

7.94

-

-

RCGX120700

12.700

12.700

7.94

  -

-

RCGX151000

15.875

15.875

10.0

-

-

RCGX191000

19.05

19.05

10.0

-

-

SNMN Solid PCBN Inserts.jpgSNMN Solid PCBN Inserts

Insert Type

Size Info

L(mm)

I.C(mm)

S(mm)

R(mm)

D(mm)

SNMN090308

9.520

9.525

3.18

-

-

SNMN090412

9.525

9.525

4.76

-

-

SNMN120712

12.700

12.700

7.94

-

-

SNMN150704

15.875

15.875

7.94

-

-

SNMN150708

15.875

15.875

7.94

-

-

SNMN201020

20

20

10

-

-

3 . Roll grinding wheel

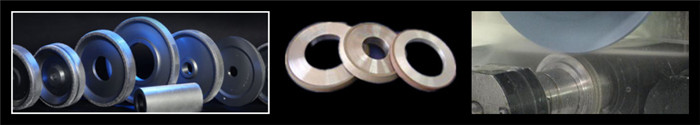

Diamond and CBN grinding wheel for roller process Diamond Grinding Wheel used for WC hard alloy roll ring process. CBN Grinding Wheel used for HSS Roller process.

* Hole-shape Grinding Wheel: for roll ring notch and finishing.

* Ex-circle grinding Wheel: for ex-circle grinding and cutting of roll ring.

* Inverted-angle Grinding Wheel: for inverted-angle of roll ring.

Roll grinding wheel

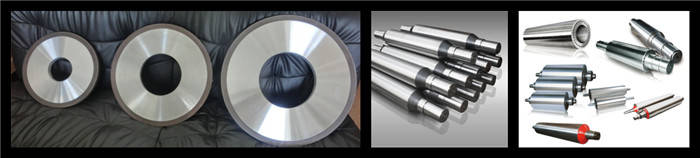

Big- diameter resin roll grinding wheel

More Superhard manufactures a wide variety of standard and custom grinding wheels up-to 36" . Big - diameter resin roll grinding wheel are produced by block pressing or segment pressing , aggressive cut, great feed per pass, heavy stock removal provide greatly improved grinding performance ideal for accident rolls and cracked rolls without scratches or chatters.

Applications:grinding tungsten carbide thermal sprayed rolls, chrome oxide thermal sprayed roll, high speed steel rolls , hard alloy rolls and stainless steel rolls.

resin diamond grinding wheel

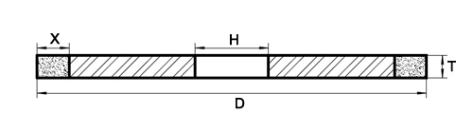

1a1 diamond flat grinding wheel.jpg 1A1 diamond grinding wheel

D(mm)

H(mm)

T(mm)

X(mm)

600

203.2

25

25

600

203.2

50

10

600

203.2

50

25

750

305

40

10

750

305

75

10

800

305

75

10

914.4


25/50

10/25
