PCD boring tools are used for machining various of tungsten carbide rollers. PCD tips for carbide roller notching.
The PCD boring tools are made by PCD blanks (E6) brazing on the tungsten carbide body. Most common is full face pcd notching tools.
Applications of PCD boring tools:
PCD boring tools are used for machining various of tungsten carbide rollers. PCD tips for carbide roller notching.
Advantages of PCD boring tools:
* high abrasive resistance and thermal conductivity
* good surface finish
* Long service life. The service life is 20-30 times more than carbide boring tools.
The specification of PCD boring and notching tools:
| D | b | H1 | H2 | L | θ° |
| 2.5 | 0.5 | 1.6 | 5.2 | 80 | ||
| 3 | 0.6 | 1.8 | 5.5 | 80 | ||
| 3.2 | 0.6 | 1.8 | 6.2 | 80 | ||
| 4 | 0.7 | 2.3 | 7.83 | 70 | ||
| 4 | 0.8 | 2.4 | 9.55 | 80 | ||
| 4.5 | 0.9 | 2.75 | 10.75 | 80 | ||
| 5 | 1.0 | 3 | 9 | 80 | ||
| 4 | 0.7 | 3.3 | 3.4 | 7.98 | 80 |
| 4 | 0.8 | 3.3 | 3.4 | 9.68 | 80 | |
| 4.5 | 0.9 | 3.5 | 3.9 | 10.80 | 80 | |
Application Cases Of PCD notching tools for carbide rollers:
* 4*7.8, 5*9 PCD notching tools for carbide roller Have Sent To Saudi Arabia Customer
| Product name | PCD boring tools, PCD tools for carbide roller notching |
| size | 5 * 9， 4 * 7.8 |
| workpiece | carbide roller notching |

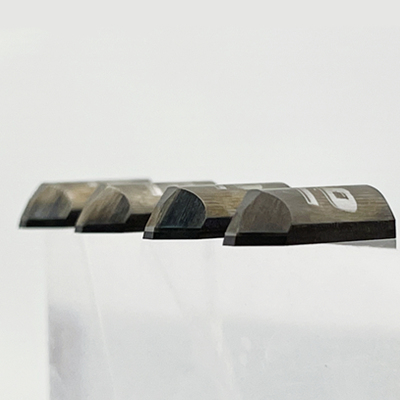

Product Photo Show
| |
