If you're machining fuel injection components, you already know the challenge: nozzle bores at Ra 0.1μm, needle cylindricity within 1.5μm, plunger clearance fits under 3μm. This guide walks through how to select the right CBN grinding wheels, diamond honing stones, PCD cutting tools, and dressing rollers for each step — from internal grinding at 100,000 RPM to final bore honing.
Nozzle Body | Injector Nozzle Body (The heart of the injection system — houses guide holes, valve seats, high-pressure fuel channels, and spray orifices.) | Material | Hardness | Tolerance | Tools |
Quenched alloy steel, martensitic stainless steel | HRC 58–65 | Roundness ≤ 1μm · Ra ≤ 0.1μm | Micro drills, precision reamers, WA/CBN grinding heads, honing stones | ||
Control Valve
| Control Valve (Governs injection timing and fuel quantity. Mating surface quality directly determines injection accuracy.) | Challenge | Tools | ||
Tight-clearance mating surfaces, near-zero leakage, strict surface integrity
| CBN turning tools, CBN grinding wheels, honing tools | ||||
Needle | Needle Valve (The fastest-moving part in the assembly. Its high length-to-diameter ratio makes it ) | Challenge | Tools
| ||
Extreme cylindricity, deformation control during grinding | CBN external grinding wheels, centerless grinding wheels, CBN inserts | ||||
Plunger & Barrel | Plunger and Barrel (The pressure-generating pair inside high-pressure fuel pumps. Must seal under extreme pressure with micron-level running clearance.) | Challenge | Tools | ||
High-pressure sealing, micron-clearance fits, long wear life |
CBN grinding tools, diamond/CBN honing stones | ||||

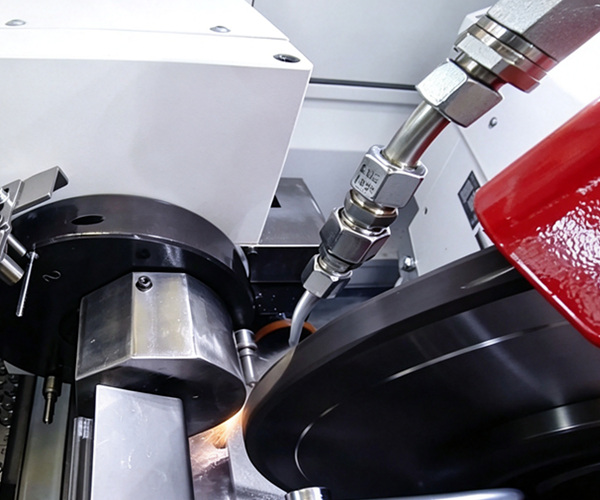

Internal Grinding (ID Grinding) | |

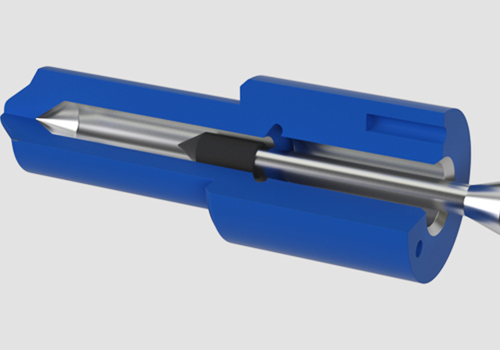

Applications | Nozzle Body Bore · Valve Bore · Guide Bore |
Objectives | Improve bore accuracy, roundness, and surface quality |

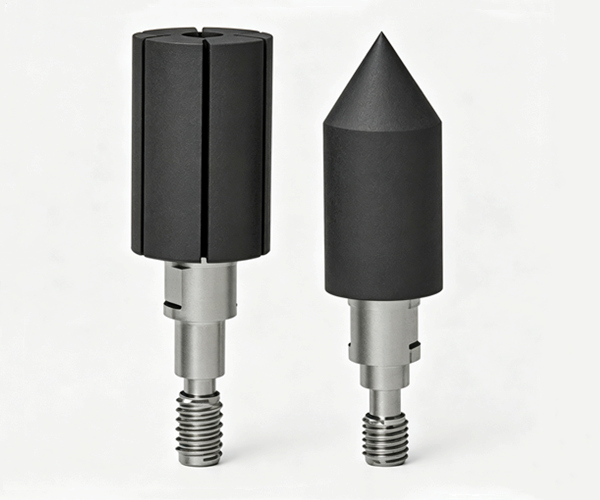

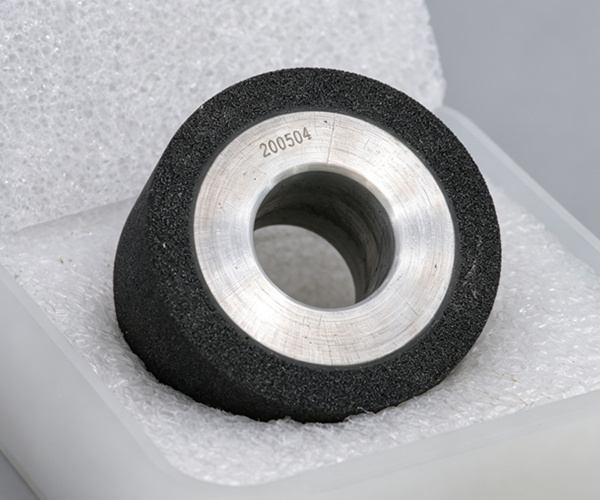

Common Grinding Head Types | White corundum (WA) grinding heads, electroplated CBN grinding heads, resin CBN grinding heads, vitrified CBN grinding heads
|
Typical Speeds | 60,000 – 120,000 RPM |
Research Advances | Vitrified CBN micro grinding wheels with tailored bond formulations for nozzle machining demonstrate superior grinding efficiency and surface quality compared to conventional options, achieved through reduced firing temperatures and enhanced bond strength. |

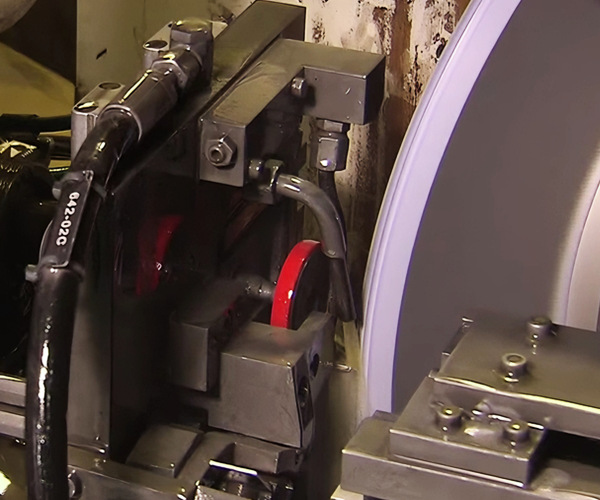

External Grinding (OD Grinding) | |
Applications | Needle · Plunger · Valve Stem |
Objectives | Control cylindricity, improve dimensional stability |
Common Tools | CBN external grinding wheels, resin-bonded wheels, vitrified-bonded wheels
|
Seat Grinding | |
Applications | Injector Seat · Valve Seat |
Objectives | Ensure sealing performance, control contact area |
Common Tools | Form CBN grinding wheels, micro grinding tools |
Research Advances | In seat grinding operations, CBN wheels running at 100,000 RPM can machine the needle valve body's hollow seat to Ra 0.1μm, with a dressing interval of every 8–12 parts. |
Grinding gets you close. Honing gets you across the finish line. For many critical bores in fuel injection components, honing is the operation that delivers the final surface and geometry spec — improving roughness, correcting cylindricity errors, and creating the cross-hatch pattern that retains lubricant and supports sealing.

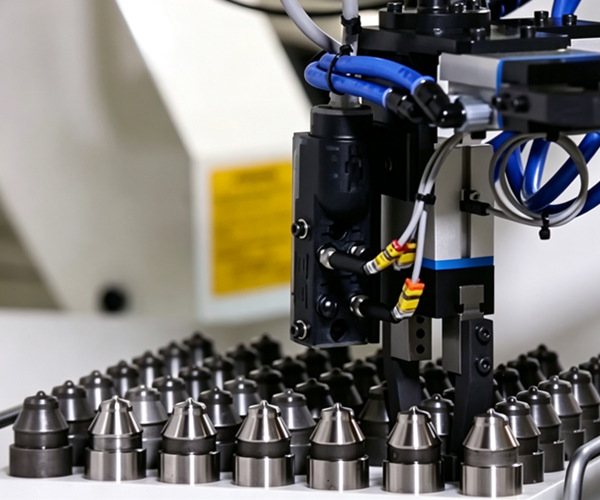

Where Honing Shows Up
Nozzle Bore — Directly impacts spray pattern and atomization quality
Valve Bore — Governs mating clearance and leak rate
Plunger Bore — Determines whether the pump can hold high-pressure seal
Tool Type | Best For | Key Characteristic | Typical Application |
CBN Honing Stone | Hardened steel, wear-resistant steel | High efficiency, long life, thermal stability | Nozzle bore, valve bore |
Diamond Honing Stone | Cemented carbide, superhard materials | Excellent shape retention, high precision | Plunger bore, carbide valve seats |
Metal Bond Honing Stone | Hardened steel, high-temp alloys | High bond strength, superior form retention | Automated batch production |
Vitrified Bond Honing Stone | Hardened steel, stainless steel | Controllable porosity (15%–30%), good chip flow | High-precision bore finishing |
On precision honing systems such as Sunnen, CBN honing stones routinely hit Ra ≤ 0.05μm with ±0.001mm tolerance bands, and remove material up to 40% faster than resin-bond alternatives[8]. Vitrified CBN stones engineered with 15%–30% porosity channel chips away efficiently, making them well-suited to automated production lines where unattended run time is critical
Grinding and honing may dominate the back end of the process chain, but the operations that precede them — turning, drilling, milling — rely on superhard cutting tools. PCD, PCBN, and CBN inserts bring unique capabilities to these pre-finish operations:
Tool Type | Category | Details |
PCD | Product | PCD Thread Milling Cutter |
PCD | Use | High-precision thread machining, long-run continuous production |
PCD | Advantages | Extended tool life, stable dimensional accuracy, superior thread surface |
Micro Drill | Product | Miniature Drill Bits |
Micro Drill | Use | Injection hole drilling, cross-hole machining, precision oil passage |
Micro Drill | Features | High precision, high rigidity, micro-diameter geometry |
CBN | Product | CBN Turning Tools / PCBN Inserts |
CBN | Use | Hard turning of hardened steel — substituting for grinding in select operations |
CBN | Advantages | Higher throughput, lower cost per part, greater process flexibility |
In hard turning applications, CBN tools can step in for certain grinding steps, cutting machining time for hardened steel (HRC 58–65) parts by a significant margin while holding Ra ≤ 0.4μm. Companies such as Funaike have built out comprehensive CBN tool product lines that address a range of automotive engine component applications
