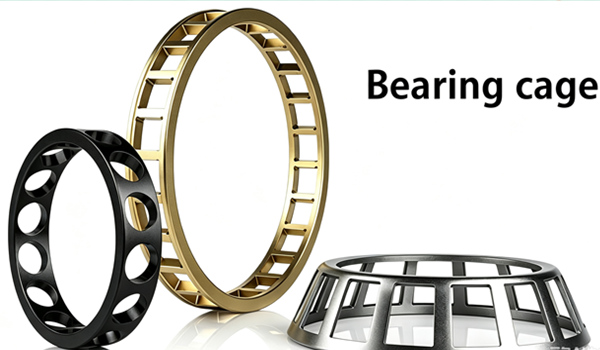

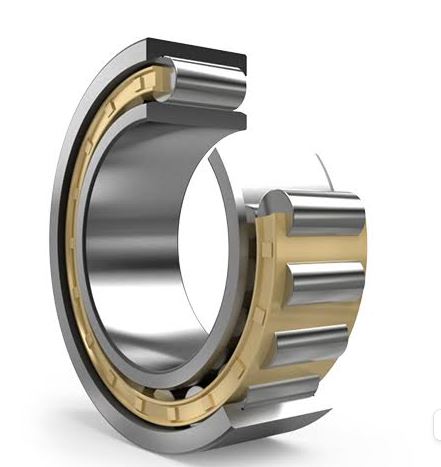

Brass bearing cages are widely used in demanding bearing applications where strength, durability, and reliable operation are important. Machined brass cages can be found in various bearing designs, particularly where robust cage performance is required under demanding operating conditions. However, producing precision brass bearing cages requires more than simply removing material. Manufacturers must control dimensional accuracy, surface finish, burr formation, tool wear, chip evacuation, and production efficiency throughout the machining process.

Why Is Brass Bearing Cage Machining Challenging?

Brass is generally considered a machinable non-ferrous metal, but achieving stable production of precision bearing cages still requires careful control of the tooling system.

The challenges are often related not only to material removal but also to maintaining consistent part quality throughout a production run.

Burr Formation and Edge Quality

Burrs can occur when machining edges, grooves, windows, or other small features of a cage. Excessive burrs may increase the need for secondary deburring operations and can affect assembly or the functional performance of the finished component.

A sharp and properly designed cutting edge can help improve edge quality. However, the optimum geometry depends on the specific brass alloy, machining operation, and cutting conditions.

Material Adhesion and Built-Up Edge

Under certain machining conditions, material can adhere to the cutting edge and affect cutting stability, surface quality, and dimensional consistency.

Tool geometry, cutting-edge preparation, tool surface characteristics, and appropriate machining parameters should therefore be considered together rather than selecting a tool solely based on its substrate material.

Tool Wear and Dimensional Stability

For high-volume bearing cage production, even relatively small changes in tool geometry caused by wear can eventually influence part dimensions and surface finish.

This is particularly important when machining components with tight tolerances or when a production line operates continuously for long periods.

A suitable tooling solution should therefore provide a balance between:

• Tool life

• Dimensional consistency

• Surface quality

• Production efficiency

• Cost per component

Chip Control and Evacuation

Chip management is another important consideration, especially during internal machining, grooving, and parting-off operations.

Poor chip evacuation may result in:

• Chip recutting

• Surface damage

• Tool interference

• Unstable cutting

• Increased risk of tool failure

The cutting tool geometry, machine setup, coolant or lubrication strategy, and cutting parameters should be optimized as a complete system.

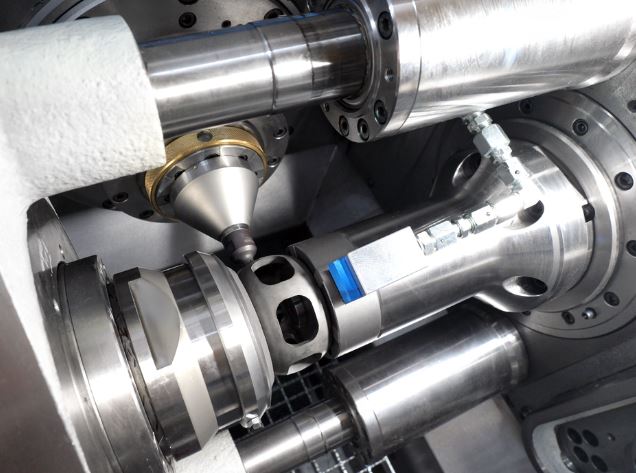

Brass Bearing Cage Machining Process

The machining route depends on the cage design, brass alloy, bearing type, production volume, and required tolerances. A typical process may include raw material and blank preparation, rough turning, precision turning, boring, groove and profile machining, window or pocket machining, parting-off, and final inspection.

During rough turning, carbide tools are commonly considered for efficient material removal and general machining. Precision turning and boring require stable cutting, accurate tool geometry, and good surface finish. For groove, chamfer, and profile machining, the cutting tool must provide accurate geometry and effective burr control.

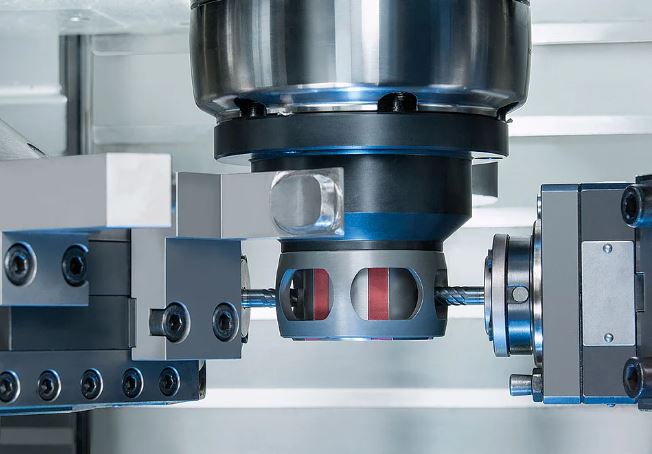

For cage designs with windows or pockets, additional milling, slotting, or profiling operations may be required. These operations demand good tool rigidity, accurate positioning, and effective chip evacuation to maintain dimensional consistency.

Parting-off is another important operation in brass cage production. Cutting width, tool rigidity, vibration, and chip control should be carefully balanced. A suitable parting-off solution can help improve machining stability while controlling material loss during high-volume production.

Common Challenges in Brass Cage Machining

Brass machining may involve several challenges, including burr formation, material adhesion, built-up edge, vibration, poor chip evacuation, and progressive tool wear. These issues can affect surface quality, dimensional accuracy, and production consistency.

In mass production, tool wear is particularly important. As the cutting edge changes, part dimensions and surface finish may gradually shift. Therefore, tool selection should consider not only the initial tool cost but also tool life, dimensional stability, machining efficiency, and cost per component.

Cutting Tool Solutions for Brass Bearing Cages

Rough Turning and Reference Surface Machining：

Carbide tools are commonly considered for general-purpose roughing and turning because of their versatility and broad applicability. Depending on the material and machining conditions, optimized tool geometry and suitable coatings may also be considered.

Precision Turning and Finishing

After rough machining, finishing operations are used to achieve the required dimensional accuracy and surface quality.

Important considerations include:

• Cutting-edge sharpness

• Tool geometry

• Surface finish

• Dimensional stability

• Tool wear

For selected high-precision non-ferrous machining applications, PCD and diamond tools may be considered where consistent surface quality, edge sharpness, and extended tool life are important.

The optimum solution depends on the specific brass alloy, component geometry, tolerance requirements, machine tool, and production volume.

Internal Diameter and Boring Operations

Internal machining can present different challenges from external turning.

Typical concerns include:

• Limited chip evacuation space

• Tool overhang

• Vibration

• Dimensional accuracy

• Surface finish

For small-diameter or deep boring operations, a rigid tool-holder system and appropriate boring-bar geometry can help improve machining stability. Where necessary, anti-vibration boring solutions may also be considered for applications with long tool overhangs.

Groove, Chamfer and Profile Machining

Brass bearing cages may contain various grooves, chamfers, radii, or other profile features.

These operations require close control of:

• Groove width

• Profile accuracy

• Edge quality

• Burr formation

Depending on the geometry and production requirements, manufacturers may use precision carbide tools, PCD tools, or custom profile tooling.

For complex or non-standard cage geometries, a custom-designed cutting tool can be developed based on the part drawing and machining requirements.

For other bearing manufacturing operations involving hardened ferrous components, such as suitable bearing rings, CBN tools can provide an effective hard-machining solution.

How to Choose the Right Cutting Tool

The best cutting tool is not determined by tool material alone. Tool selection should consider the brass alloy, part geometry, machining operation, machine tool, cutting parameters, production volume, dimensional tolerance, and required surface finish.

Moresuperhard manufactures customized diamond, PCD, CBN, and carbide cutting tools for precision machining applications. By combining tool material, cutting-edge geometry, and application requirements, we help manufacturers develop tooling solutions for brass bearing cages and other bearing components.
